LS16Pro 2-in-1 controller product specification

Overview:

TheLS16Pro is a control processor for the live performance LED large screen design. It adopts the industry's top design technology and meets international and industry standards. It is the industry's first 2U device to support dual 4K@60Hz input.

Customized loading within 9.6 million pixels of the whole machine to meet most of the on-site needs.

Functional characteristics:

- The single network port carries 650,000 pixels, the whole machine has a maximum load of 9.6 million pixels, the width can reach 16000 points, the height can reach 8000 points, and the single machine has 16 network ports.
- Access to DVIx2, HDMIx3, DPx2, and SDI channel signals
- Support 8 screen display, screen position arbitrary layout
- Pure hardware FPGA architecture: no CPU, no kernel, no poisoning and crash risk, the system runs stably. Mean time to failure MTBF>30,000 hours, supporting 365×24 hours of continuous operation
- Image freely zoomed display
- All layers support cutout, transparency, and edge feathering for best results
- User-friendly interactive control interface with front-end switch, LCD information color screen, plastic buttons and smart knob
- EDID configuration management: support EDID (Extended Display Identification Data) read, modify, customize
- Panel identification source status
- Support one button black screen / still
- Black edge/trimming function: solves the black edge problem generated by the front-end signal, and makes arbitrary cropping for any signal source (still maintaining the full screen state)
- Support key lock to prevent misoperation
- Color Restore Settings: Color Restore Settings option in the client software

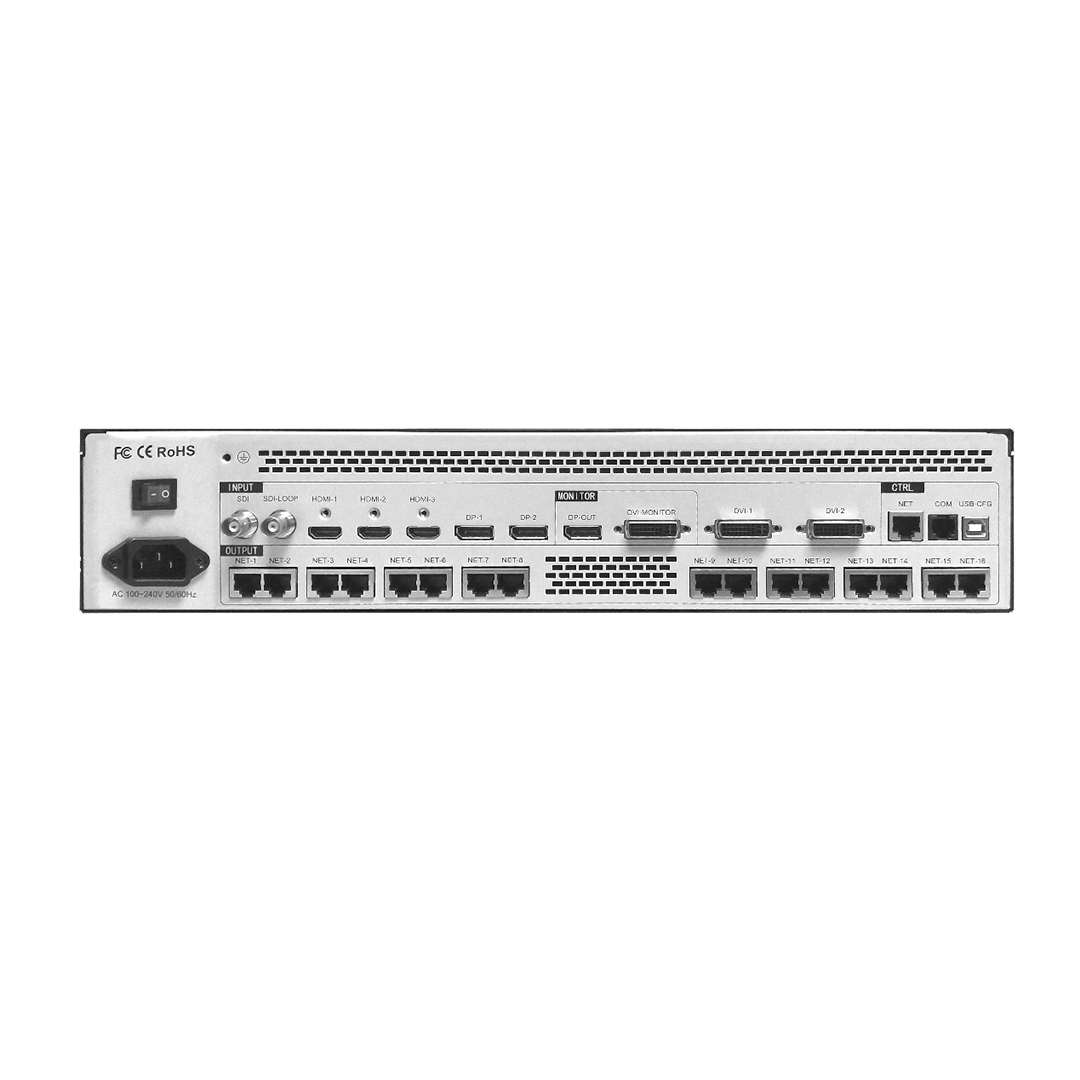

Input/Output Interface:

- Input:DVI *1, HDMI *3, DP *2, SDI *2,
- Output:Gigabit network port*16 DP-LOOP*1 AUDIO*1
- Control port:USB-CFG *1, COM *1, RJ45*1

Load:

- Max resolution:9.6 megapixels
- Max width:16000
- Max width:8000
(2 pcs DP-4K input)
