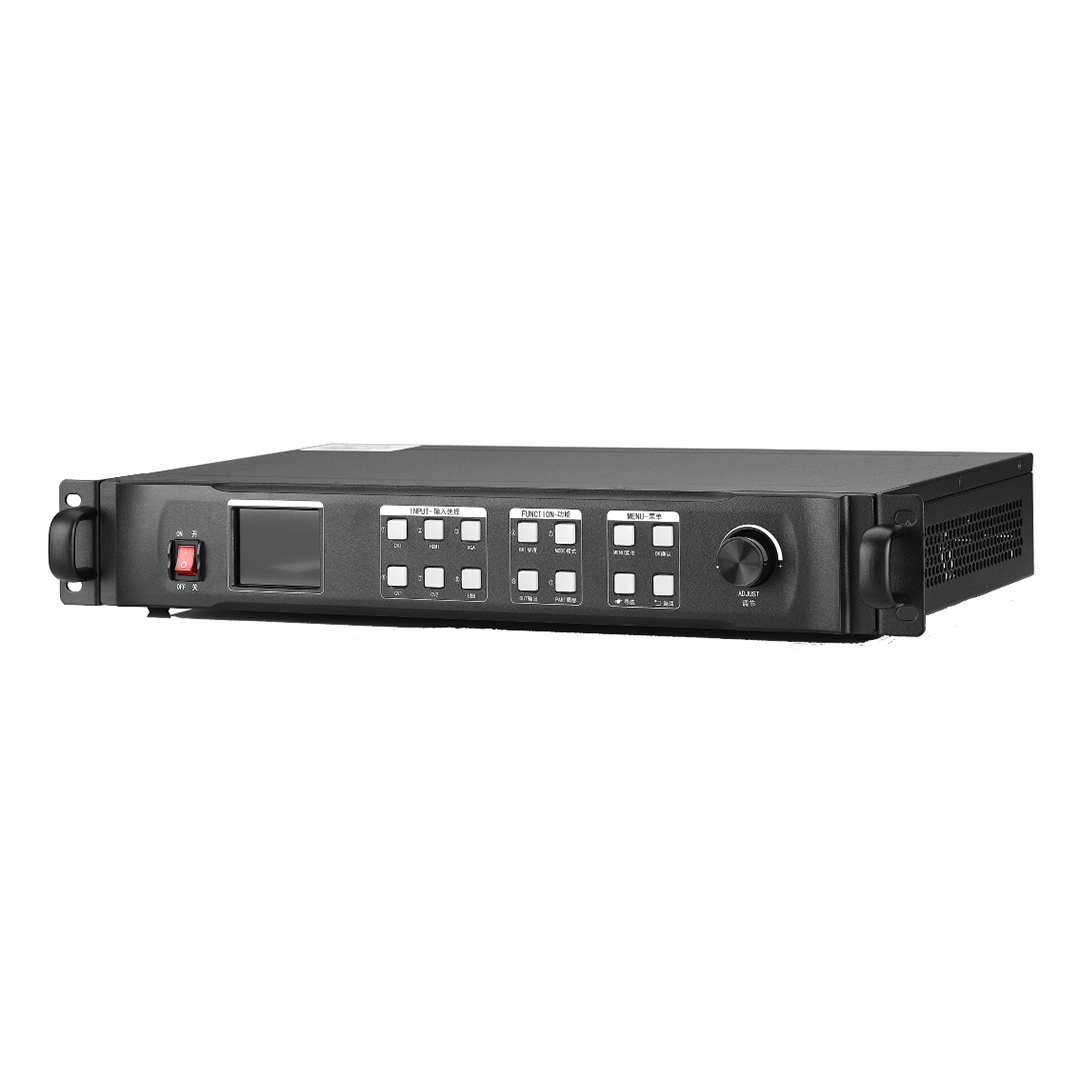

Bộ Xử Lý Hình Ảnh 2 Trong 1 KYSTAR LS2

Splicing processor LS2 product specification

Overview:

LS2 specifically for the LED display scheme launched a set of professional video processor, integrated led send card, offline player in one, highly integrated triple send controller, a device can easily handle large screen, greatly facilitate the LED Scenario configuration

Functional features:

- Professional Video Processor: HD Multi Format Signal input Transient or fading transitions between arbitrary signals Arbitrary free Zoom Display
- Integrated LED sending card： 2 network port output, can be directly driven 1314520 pixel display, widest 3840, highest 1536.
Support without computer direct operation,3 Step screen
- High-performance offline Player: Support for USB playback, perfect support for a variety of video, image formats Can be offline scheduled tasks, according to the user set time to automatically play or switch signals
- with audio input and output: Two-channel audio input, one-channel audio output Supports video and audio switching

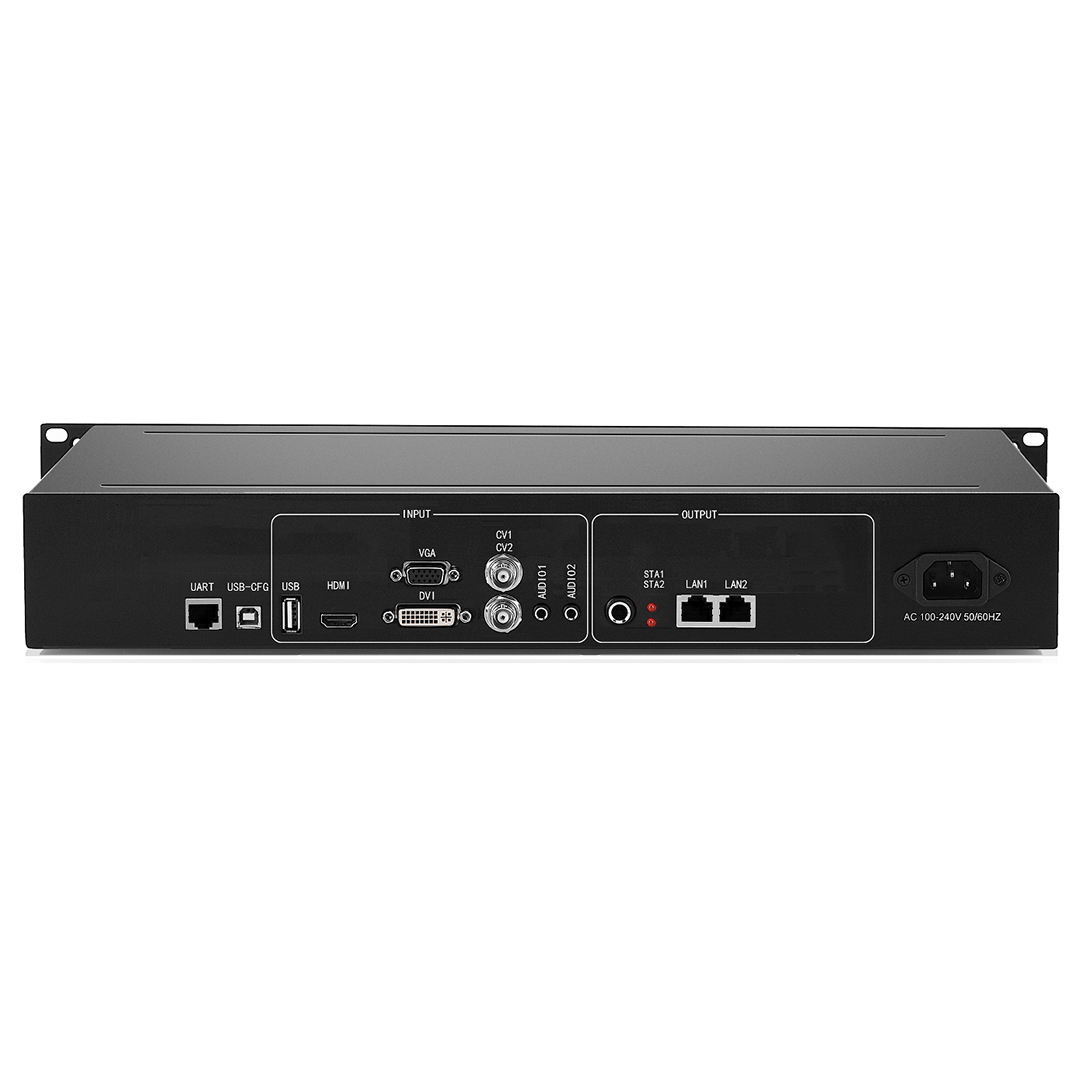

Input/Output Interface:

- Input: DVI *1, HDMI *1, VGA*1, CVBS *2, USB *1, AUDIO *1
- Output: Gigabit network port*2 AUDIO*1
- Control port: USB-CFG *1, COM *1

Load:

- Max resolution: 1.3 megapixels
- Max width: 3840
- Max width: 1536
