Bộ Xử Lý Hình Ảnh 2 Trong 1 KYSTAR LS8

LS8 eight network port two in one controller product specification

Overview:

LS8 is an eight-port two-in-one controller that integrates professional video processor and LED transmission card for LED display solution. A large screen can be easily accessed from a single device, greatly simplifying LED configuration and on-site debugging. At the same time, it also has dual-screen display function, multi-machine cascading for super-large resolution splicing display, audio and video synchronous switching.

Functional characteristics:

1. The maximum load of the whole machine is 4.8 million pixels, the widest is 3840 pixels, and the highest is 1536 pixels.
2. Support PC software control to achieve visual and fast operation;
3. Support dual-screen display, can draw Chinese painting, painting outside, the screen position is arbitrary;
4. Support fade in and out perfect switching;

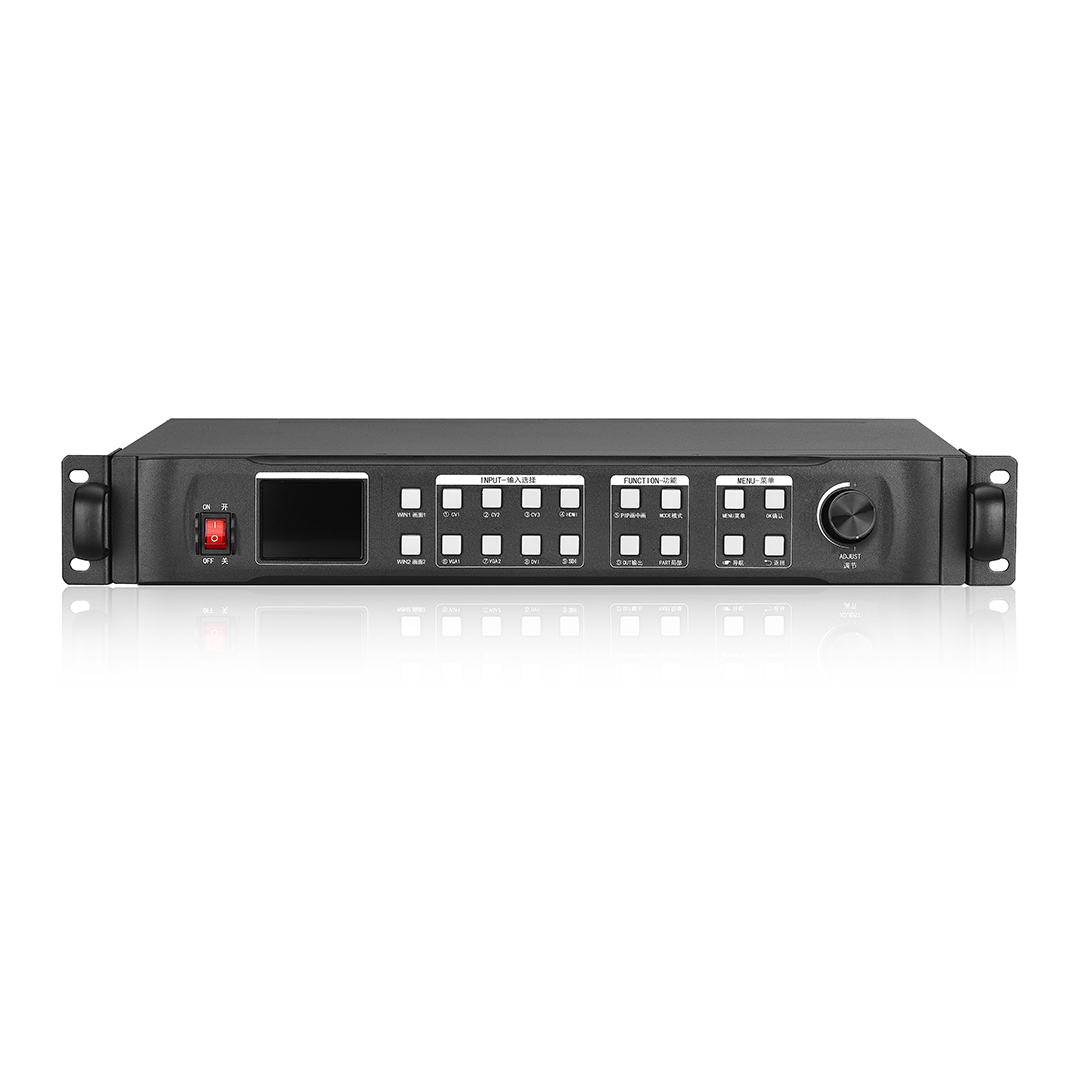

5. Supports independent operation of the control panel, and the design of the knob and numeric keys makes the device easier to use;
6. Support 8 channels of high definition SD video input (SDI option), 4 channels of audio input, 1 channel of audio output;
7. Support keyboard lock function to prevent misoperation of field personnel after construction and commissioning;
8. Supports saving and invoking of five scene modes;

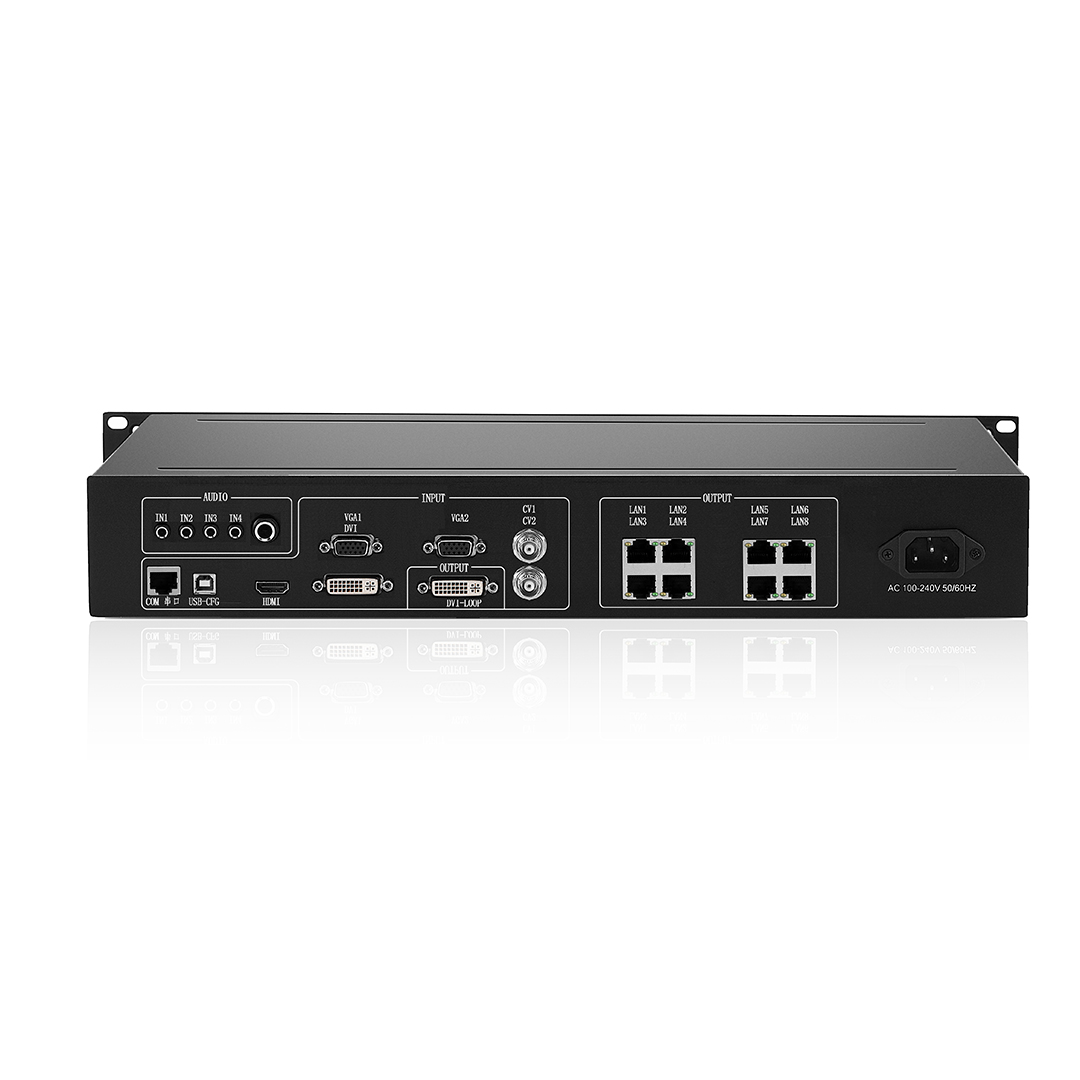

Input/Output Interface:

- Input: DVI *1, HDMI *1, VGA *2, CVBS *2, AUDIO *4
- Output:Gigabit network port*8 DVI LOOP*1 AUDIO*1
- Control port:USB-CFG *1, COM *1

Load:

- Max resolution:4.8 megapixels
- Max width:3840
- Max width:1536
