Bộ Xử Lý Hình Ảnh KYSTAR U2

Specification for splicing Processor U2 Products

Summary:

U2 is a mosaic processor for small and medium-sized LED mosaic market. It adopts the top design technology in the industry and meets the international and industry standards. The maximum load of the machine is 2560 x 1536, which meets the needs of most small and medium-sized splicing sites.

Functional characteristics:

- Single computer supports 2560 *1536 UHD mosaic output and 2.6 million custom output in replication mode.
- Supporting synchronous switching of audio and video
- Dual-channel output, can complete picture-in-picture and picture-out-picture display
- Support 1080P Full Screen Monitoring Output
- Intercept and display any part of the signal source
- Support multi-machine splicing cascade
- Five scenario modes can be saved, one-click call
- Support straight cut and fade in and out, no black screen, Carton
- Panel Recognition Signal Source Status
- Supporting one-click black screen/static
- Built-in two sending cards, no disassembly installation
- Navigation settings, easy to use without training

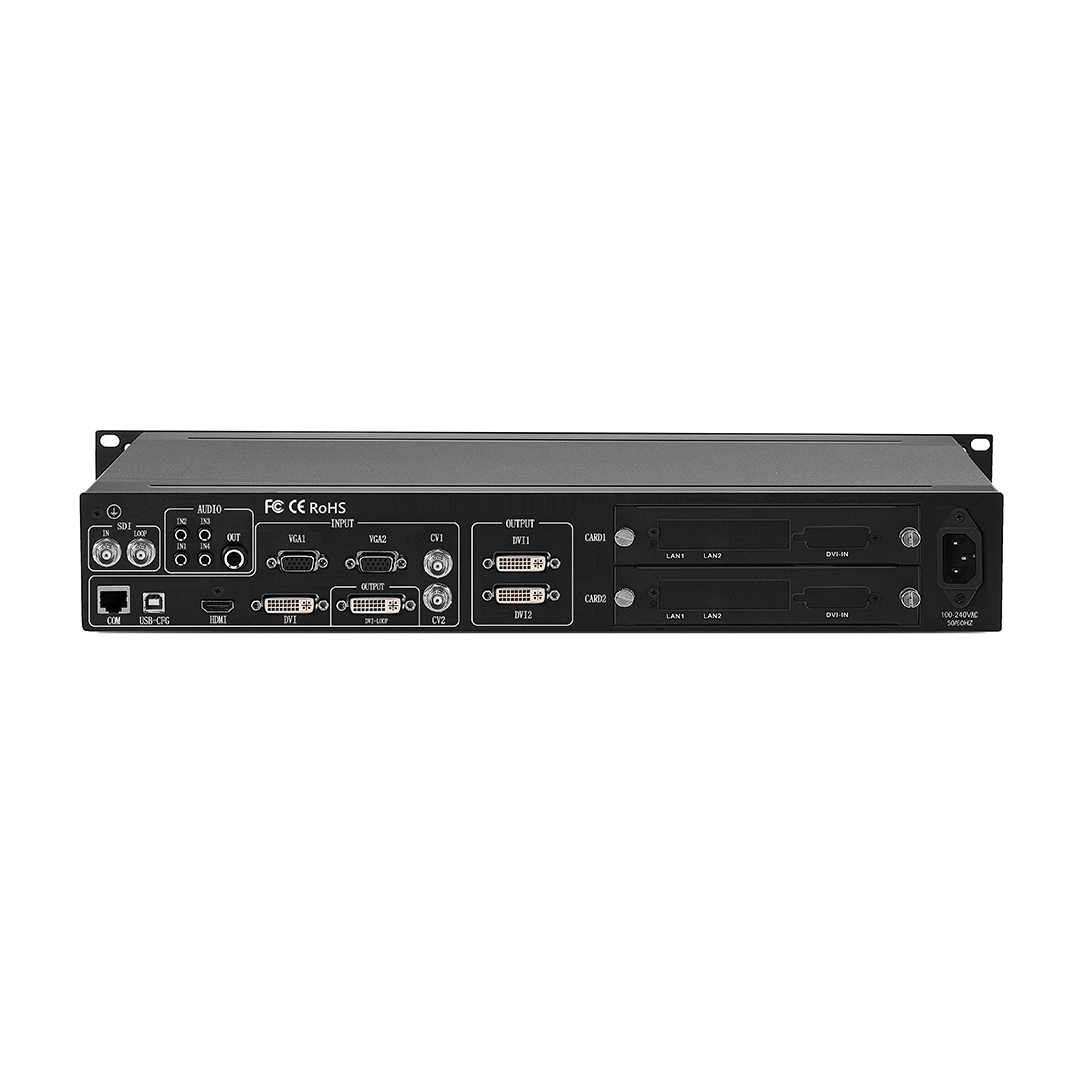

Input/Output Interface:

- Input: DVI*1, HDMI*1, VGA*2, CVBS*2, SDI*1, AUDIO*4
- Output: DVI*2, DVI-LOOP*1, AUDIO*1
- Control port: USB-CFG *1, RS-232 (DB-9) *1

Load:

- Input: DVI*1, HDMI*1, VGA*2, CVBS*2, SDI*1, AUDIO*4
- Output: DVI*2, DVI-LOOP*1, AUDIO*1
- Control port: USB-CFG *1, RS-232 (DB-9) *1
