Bộ Xử Lý Hình Ảnh KYSTAR U3

Specification for Stitching Processor U3 Products

Summary:

U3 adopts CPT + FST splicing technology specially designed for small spacing LED display screen to ensure the uniformity and synchronization of splicing. It is a high-end video processing equipment specially for LED large screen display, performance and rental, conference rooms, studios and other markets. It adopts the top design technology in the industry and meets the international and industry standards.

In the replication mode of the whole machine, 2.6 million pixels are customized to be loaded, and the maximum load of splicing is 2560 x 1536, which meets most of the field requirements. KS910Plus has a variety of monitoring modes, switching modes, complete backup, safe and reliable.

Functional characteristics:

- Output support 2.6 million pixels custom load
- The maximum load of splicing mode is 2560 x 1536@60HZ.
- Arbitrary layout of three pictures, easy to complete the centralized control of stage main screen and side screen
- Support signal echo, real-time view of input and output signals through software
- Supporting 4K UHD Signal Processing
- Multigroup Editable Global Text Overlay
- Supporting seamless switching of signals and modes, providing more than ten transitional effects
- Supporting brightness matting, image transparency adjustment and edge emergence
- Supporting multi-level input signal hot backup and multi-computer cascade synchronous output
- Intercept and display any part of the signal source
- Custom EDID
- Save 32 scenario modes, one-click call
- Supporting one-click black screen/static
- Built-in two LED sending cards

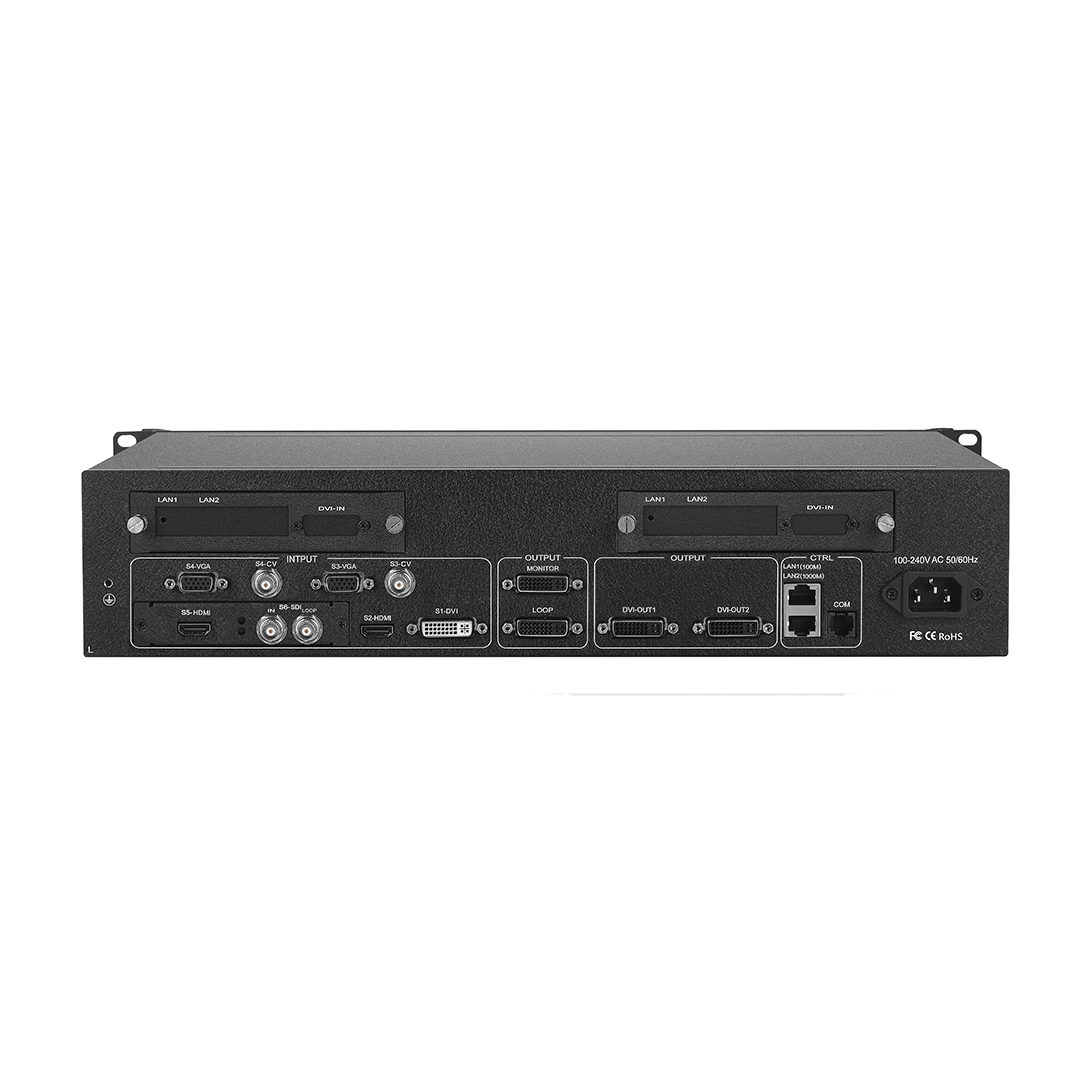

Input/Output Interface:

- Input: DVI*1, HDMI*2, SDI*1, VGA*2, CVBS*2
- EX input： DVI*2, HDMI*2, CVBS*2, HDMI-SDI *1 (include SDI loop*1), SDI*2 (include SDILOOP*2), HDMI-4K*1
- Output:DVI*2, Monitor*1, DVI-LOOP*1
- Control port： RS-232 (DB-9) *1, RJ-45*2

Load:

- Copy mode： 2.6 million custom
- Max width： 3840
- Max height:1920
- Splice mode:2560X1536
