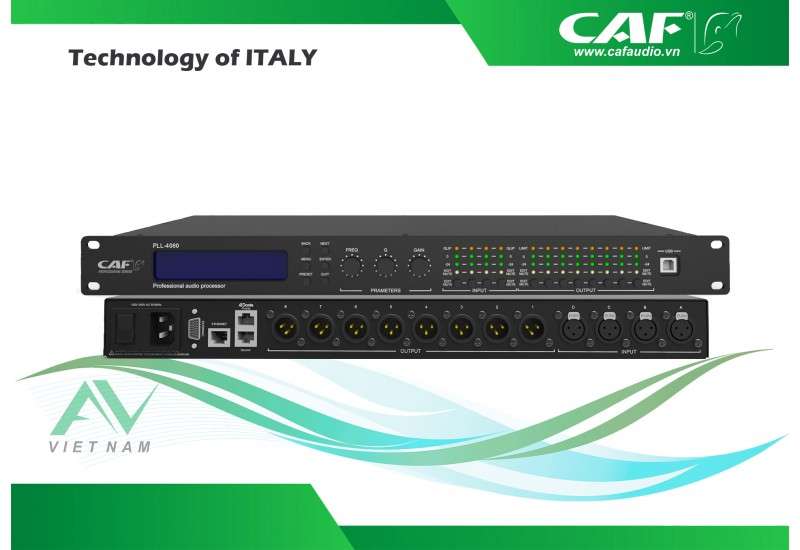

CAF PLL-4080

Bộ xử lý kỹ thuật số đa luồng của CAF Audio với 4 input và 8 output chip xử lý cao cấp cho chất lượng âm thanh cao.

Thông số kỹ thuật:

• Signal processing： ADI SHARC 21489
  Audio system delay： 2.8ms
  Digital to Analog Conversion：24-bit
  Sampling Rate： 96kHz
• ANALOG AUDIO INPUTS AND OUTPUTS
  Input channel：4 balanced inputs. Line level
  audio port： The head of the male and female XLR
  input resistance：22kΩ
  Maximum input level：16dBu/Line
  Output channel： 8 balanced outputs, line level
  Output impedance：150Ω
• AUDIO PERFORMANCE SPECIFICATIONS
  Frequency response curve： 20Hz-40kHz(±0.5dB)/Line
  Digital Noise Floor： 20Hz-20kHz，A-wt,-93dBu
  THD+N： -90dB(@0dBu,1kHz,A-wt)/Line
  Signal-to-noise ratio：108dB(@16dBu,1kHz,A-wt)/Line
• ELECTRICAL AND PHYSICAL
  Power supply： AC90V---264V  50/60 Hz
  Size (L * W * H): 483*215*44.5mm
  Net Weight: 3.2kg
  working temperature: -20℃--80℃\\\"
