EVO20-P
[Vui lòng liên hệ]

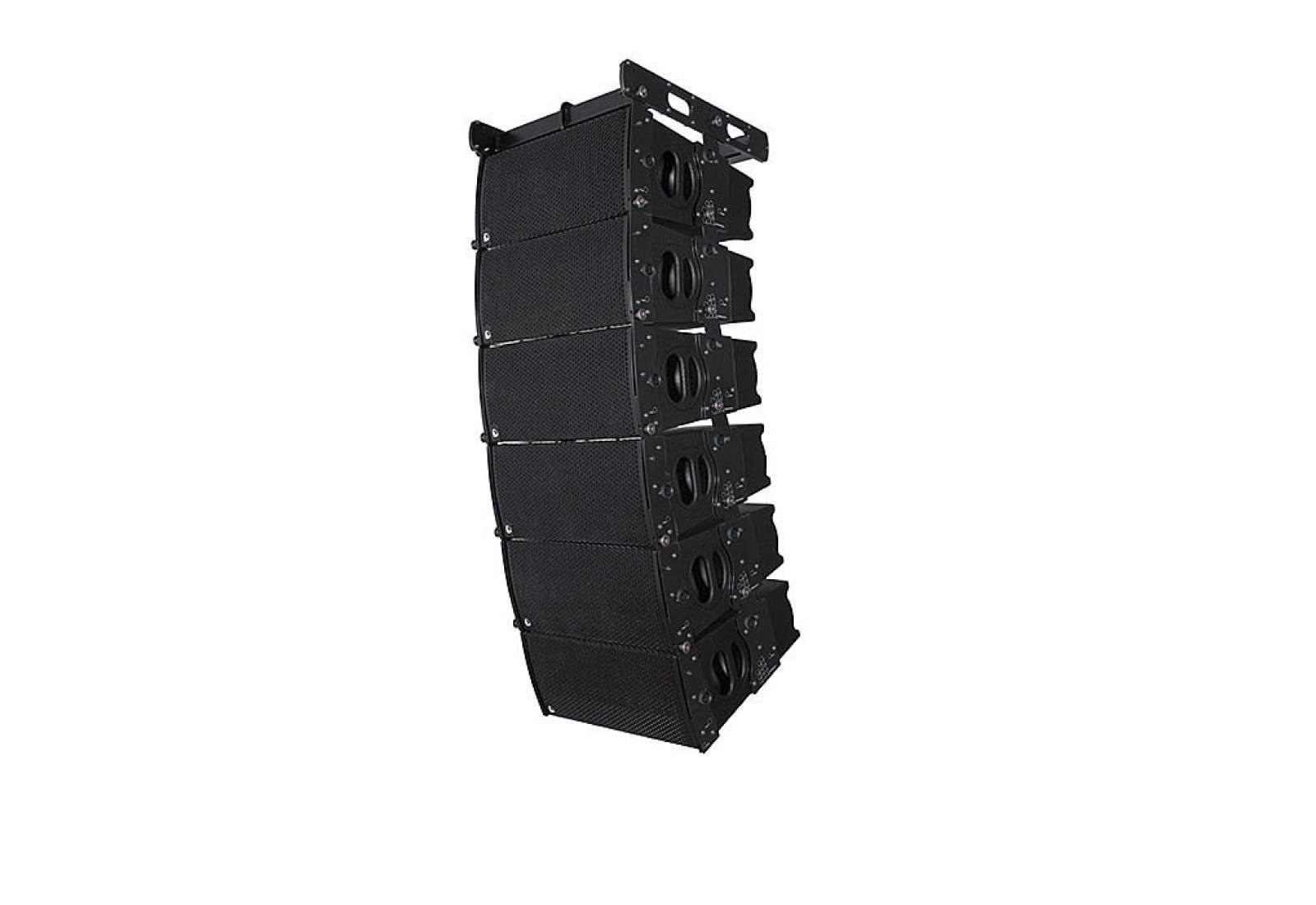

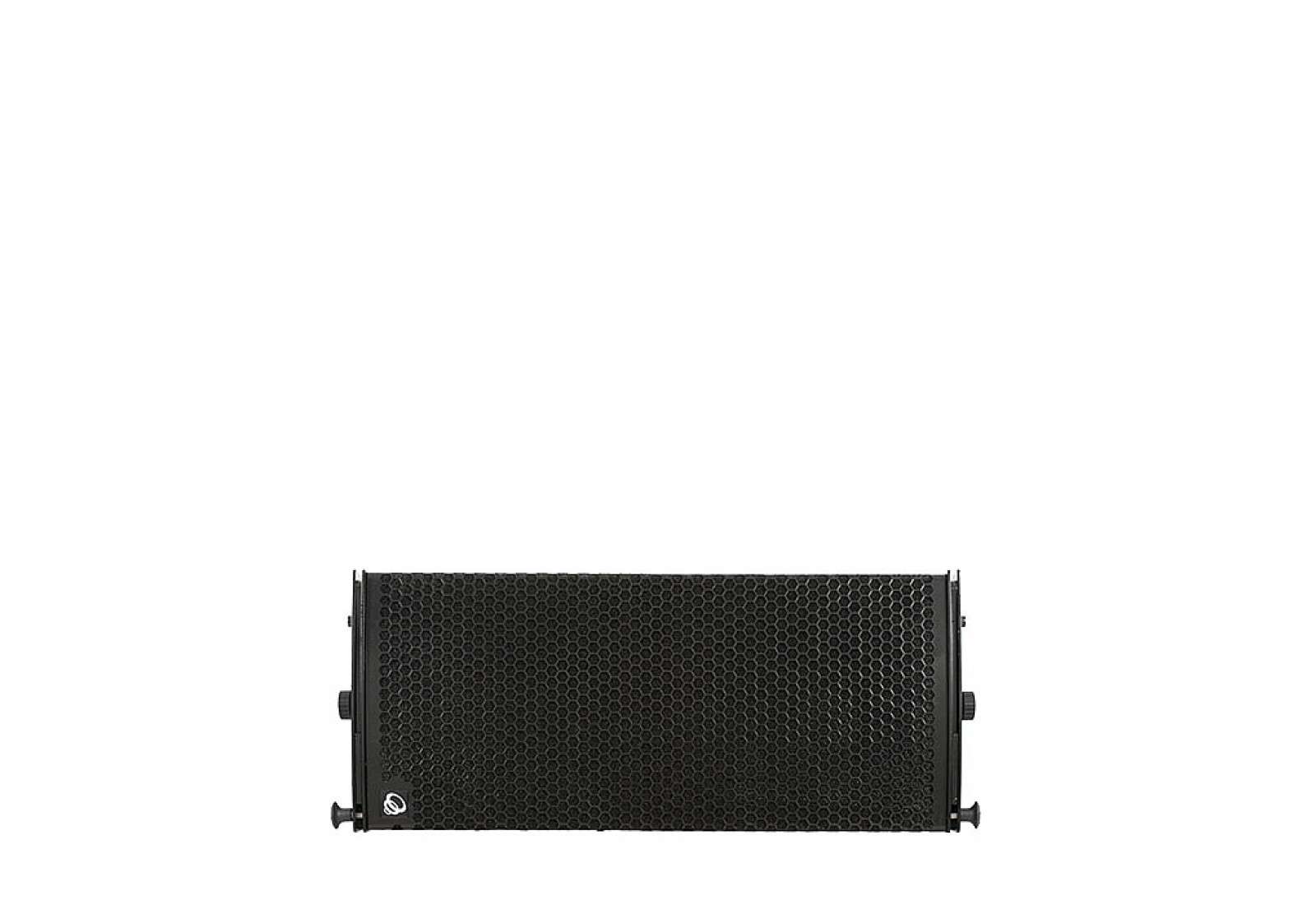

Two-Way Passive Professional Line Array System element
EVO20-P is a high value professional 2-way passivedual 10” Line Array system with excellent sonic performance and reliability, in a convenient and cost-effective package that meets all audio industry professional standards.
Mô tả:
- Premium European High Efficiency custom IDEA Transducers
- Proprietary IDEA High-Q 8-slot line-array waveguide with directivity control flanges
- Dedicated MF passive filter
- 10 Positions Integrated Precision rigging for stacked and flown configurations
- 2 integrated handles
- Rugged and durable 15 mm Birch Plywood construction and finish
- 1.5 mm Aquaforce coated steel grille with internal protective foam
- Durable Aquaforce paint, available in standard textured black or white, optional RAL colors (on demand)
- Dedicated transport /storage/rigging accessories and Flying frame
Thông số kỹ thuật:
| Enclosure design | 10˚ Trapezoidal |
| LF Transducers | 2 × 10” High performance woofers |
| HF Transducers | 1 x compresion driver, 1.4″ horn throat diameter, 75 mm (3 in) voice coil |
| Power Handling (RMS) | LF: 400 W | HF: 70 W |
| Nominal Impedance | LF: 8 Ohm | HF: 8 Ohm |
| SPL (Continuous/Peak) | 127/133 dB SPL |
| Frequency Range (-10 dB) | 66 – 20000 Hz |
| Frequency Range (-3 dB) | 88 – 17000 Hz |
| Aiming/Prediction Software | EASE FOCUS |
| Coverage | 90˚ Horizontal |
| Connectors +/-1 +/-2 |
2 x Neutrik speakON® NL-4 in parallel Input Link |
| Cabinet Construction | 15 mm Birch Plywood |
| Grille | 1.5 mm perforated weatherised steel with protective foam |
| Finish | Durable IDEA proprietary Aquaforce High Resistance paint coating process |
| Rigging Hardware | High-resistance, coated steel integrated 4-point rigging hardware 10 angulation points (0˚-10˚ internal splay angles in 1˚steps) |
| Dimensions (WxHxD) | 626 x 278 x 570 mm (24.6 x 10.9 x 22.4 in) |
| Weight | 30.2 kg (66.6 lb) |
| Handles | 2 integrated handles |
| Accessories | Rigging frame (RF-EVO20) Transport cart (CRT EVO20) |
* Specifications may be subject to change without notice
chọn mua:
Mua hàng
sản phẩm gợi ý
DEA EVO24-P
Touring Line-Array System
EVO24-P is an active large-format touring line array system specifically designed for professional sound reinforcement in big events.
Mô tả:
▪ Premium European High Efficiency custom-IDEA Transducers
▪ Dual 3.2 kW Powersoft Power Module and DSP assembly
▪ Proprietary High-Q 8-slot dual-driver waveguide assembly
▪ Multi-enclosure cabinet design
▪ Rugged 15 mm Birch plywood construction and finish
▪ 1.5 mm coated steel grille with internal protective foam
▪ Integrated Precision rigging system with 10 angulation points
▪ Integrated lateral bars for transport and setup
▪ Durable Aquarforce paint coating process
Thông số kỹ thuật:
