IDEA EVO Series
sản phẩm gợi ý

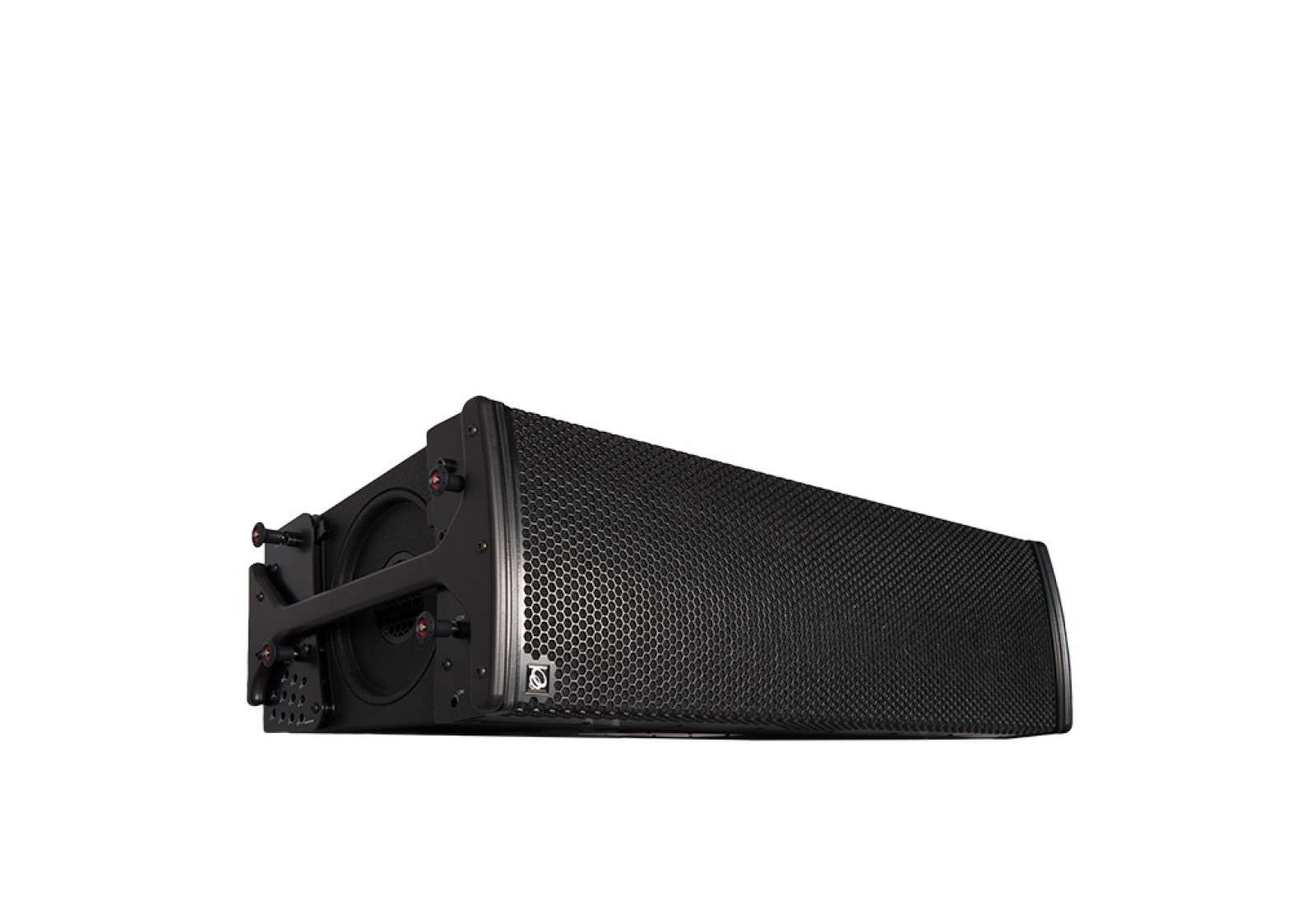

DEA EVO24-P
Touring Line-Array System
EVO24-P is an active large-format touring line array system specifically designed for professional sound reinforcement in big events.
Mô tả:
▪ Premium European High Efficiency custom-IDEA Transducers
▪ Dual 3.2 kW Powersoft Power Module and DSP assembly
▪ Proprietary High-Q 8-slot dual-driver waveguide assembly
▪ Multi-enclosure cabinet design
▪ Rugged 15 mm Birch plywood construction and finish
▪ 1.5 mm coated steel grille with internal protective foam
▪ Integrated Precision rigging system with 10 angulation points
▪ Integrated lateral bars for transport and setup
▪ Durable Aquarforce paint coating process
Thông số kỹ thuật:
| Enclosure design | 10˚ Trapezoidal |
| LF Transducers | 2 × 12″ (4″ voice coil) Neodymium woofers |
| MF Transducers | 4 x 6.5″ (2.5″ voice coil) |
| HF Transducers | 2 x 3″ Neodymiuml compression drivers |
| Power Handling (RMS) | LF1: 1.2 kW | LF2. 1.2 kW | MF: 800 W | HF: 140 W |
| Nominal Impedance | LF1: 8 Ohm | LF2: 8 Ohm | MF: 8 Ohm | HF: 16 Ohm |
| SPL (Continuous/Peak) | 136/142 dB SPL |
| Frequency Range (-10 dB) | 47 – 23000 Hz |
| Frequency Range (-3 dB) | 76 – 20000 Hz |
| Coverage | 90˚ Horizontal |
| Connectors +/-1 +/-2 +/-3 +/-4 |
2 x Neutrik speakON® NL-8 LF MF1 MF2 HF |
| Cabinet Construction | 15 mm Birch Plywood |
| Grille | 1.5 mm perforated weatherised steel with protective foam |
| Finish | Durable IDEA proprietary Aquaforce High Resistance paint coating process |
| Rigging Hardware | High-resistance, coated steel integrated 4-point rigging hardware 10 angulation points (0˚-10˚ internal splay angles in 1˚steps) |
| Dimensions (WxHxD) | 1225 x 339 x 550 mm (48.2 x 13.3 x 21.7 in) |
| Weight | 81.7 kg (180.1 lb) |
| Handles | 2 integrated handles |
| Accessories | Rigging frame (RF-EV24) Transpor Cart (CRT EVO24) Rain cover for 3 x EVO24 (COV-EV24-3) |
